| Angle | α15° | α30° | α37.5° | α45° | α60° | |
|---|---|---|---|---|---|---|
| BEVEL LENGTH | L | 55 | 56 | 56 | 49 | 48 |

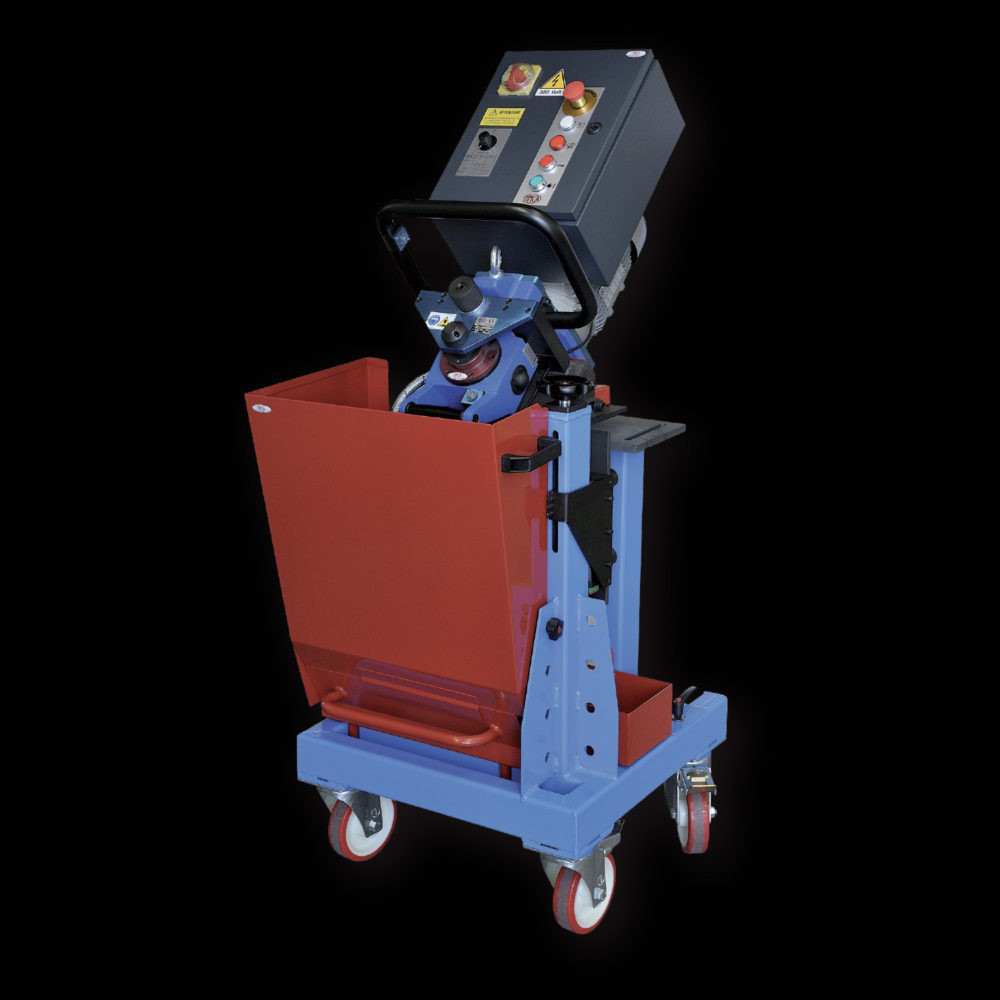

ART. 900
Performance
 |
Motor Power 230/400 Volt, 3 phase 4kw (4000W), 50/60 Hz |
 |
Bevel Length max 55 mm |
 |
Bevel Angle 15° – 60° |
 |
Plate Thickness 8 mm – 60 mm (*) 8 mm – 100 mm / 8 mm – 200 mm |
 |
Cutter Speed 750 RPM – (*) 0 – 750 RPM |
 |
Pipe Ø min 3000 mm |
 |
Cutter Ø 63mm Z5 |
 |
Feeding Speed 0 -1,4 mt/min |
 |
Dimensions and weight 600x650xh1600 mm – Kg 175 |
Bevel adjustment
MAX ACHIEVABLE BEVEL
| Angle | α15° | α30° | α37.5° | α45° | α60° | |
|---|---|---|---|---|---|---|
| Bevel length | L | 55 | 56 | 56 | 49 | 48 |
Versions on request
| Plate thickness 8/100 mm and 8/200 mm |
|---|
| Bottom Plate thickness 8 mm |
| Cutter speed adjustment |
