| Angle | α30° | α45° | |
|---|---|---|---|
| Bevel length | L | 5.5 | 6 |

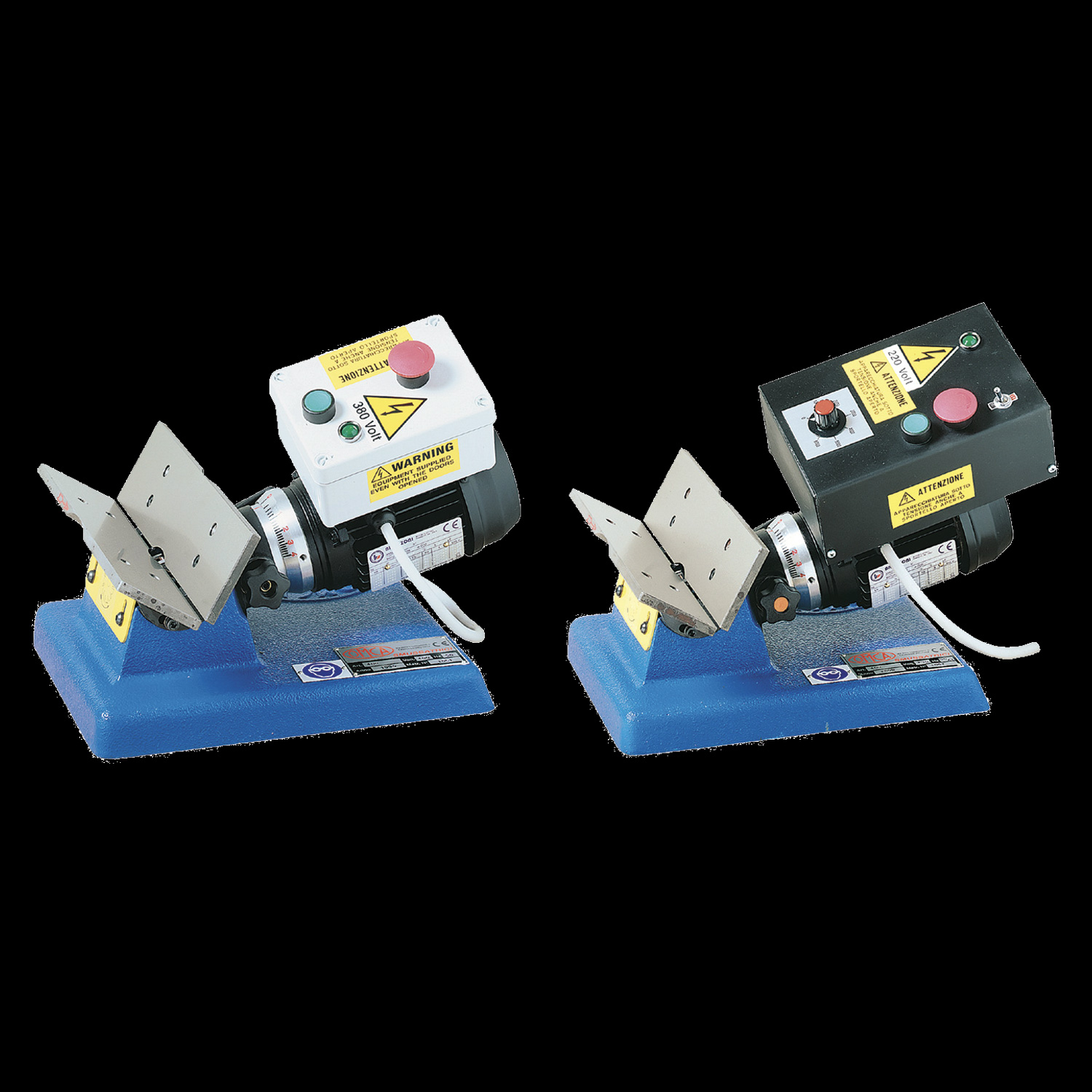

ART. 400/450 – 400 CC
Performance
 |
Motor Power 230/400 VOLT. 3 PHASE – SINGLE PHASE 0,55 KW.(550W) 50/60 HZ |
 |
Cutter Speed 2900 RPM |
 |
Bevel Lenght max 6 mm max 0.23in |
 |
Bevel Angle 30° – 45° |
 |
Cutter 400 Ø 60 mm Z9 – 450 Ø 70 mm Z12 15.75 Ø 2.36in – Z9 – 17.71 Ø 2.75in – Z12 |
 |
Dimensions and Weight 440x320x h300 mm – Kg. 22 17.32 x 12.6 x h11.81in – 48.4lbs |
 |
Radius R2, R3, R4 or R5 |
|
Motor Power 230 SINGLE PHASE 0,55 KW.(550W) 50/60 HZ |
|
Cutter Speed 0 – 6000 RPM |
|
Bevel Length max 6 mm max 0.23in |
|
Bevel Angle 30° – 45° |
|
Cutter 400 Ø 60 mm Z9 – 450 Ø 70 mm Z12 15.75 Ø 2.36in – Z9 – 17.71 Ø 2.75in – Z12 |
|
Dimensions and weight 440x320x h300 mm – Kg. 22 17.32 x 12.6 x h11.81in – 48.4lbs |
|
Bevel Radius R2, R3, R4 or R5 |
Bevel adjustment
MAX ACHIEVABLE BEVEL
| Angle | α30° | α45° | |
|---|---|---|---|
| Bevel length | L | 5.5 | 6 |
Accessories
Art. 800: Bevelling trolley with retractable wheels with tool drawer. Dimensions: 500x500x730 mm.
Art. 801: Tubular base for chamfering machines equipped with drawer for tools. Dim: 500x580x650 mm.
